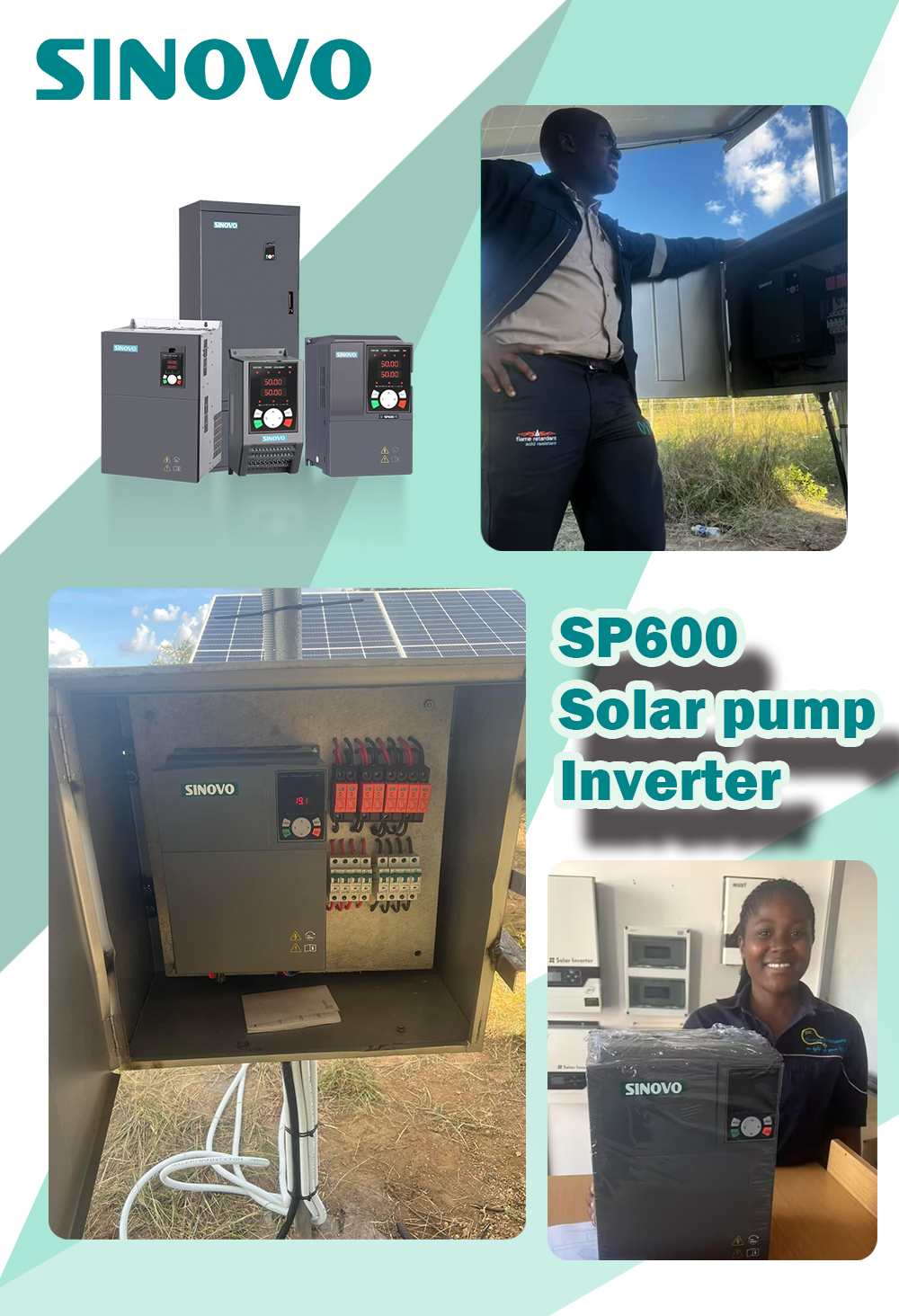

SP600/SP60 Solar Pump Inverter

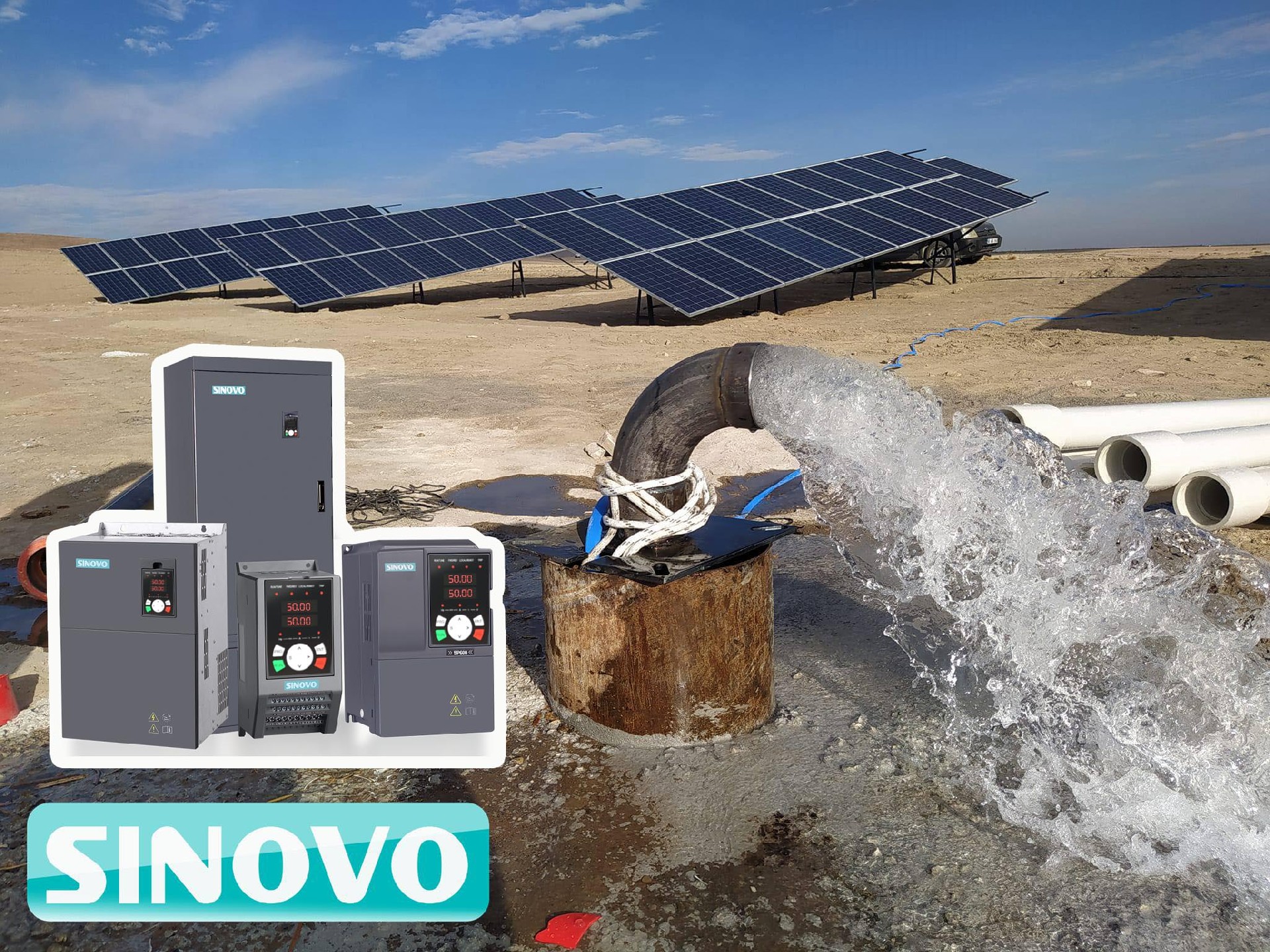

SP600/SP60 is a newly developed inverter designed specifically for solar pump applications, primarily used for water supply in remote areas with no or unstable power sources. This solar water pump inverter converts the DC power generated by solar panels into AC power to drive various types of water pumps. The system enables continuous water pumping without the need for energy storage devices like batteries, making it ideal for pumping water to storage tanks or reservoirs. The SP600/SP60 inverter features advanced Maximum Power Point Tracking (MPPT) technology, ensuring the system consistently operates at the solar array's maximum power point in real time. Below are the key advantages of our SP600/SP60 solar pump inverters:

1. Simple, Stable, and Maintenance-Free Design

Easy to install and debug, requires no additional maintenance, and offers stable operation—ideal for unattended remote or desert environments.

2. Automatic Wake-Up and Sleep Function

Automatically wakes up to work when morning light is strong and sleeps at night when light is weak, requiring no human intervention.

3. Intelligent Auto Power Switching

Automatically detects low light conditions and switches between DC and AC power to maintain constant water pumping.

4. Hybrid Power Input Capability

Supports simultaneous input from both grid power and solar power sources for flexible and reliable energy supply.

5. Remote Control and Monitoring

Optional remote control module allows management and monitoring of the water pump system via computer or mobile devices.

6. Comprehensive Water Level Control and Alarm

Supports various liquid level sensors (digital and analog) with dry-run protection, water shortage, and overflow alarms.

7. High-Efficiency MPPT Algorithm

Built-in high-precision photovoltaic maximum power point tracking (MPPT) with fast tracking speed maximizes solar energy utilization and water output.

8. Full Safety and Protection Features

Includes comprehensive safety mechanisms such as overvoltage, overcurrent, phase loss, overload, undervoltage, short circuit, overheating, and dry-run protection.

9. Supports Single-Phase Motor and Pump Drives

Specifically designed to drive single-phase motors and pumps efficiently and reliably.

10. Dual-Line LED Display Standard

Equipped with a clear two-line LED display for easy status monitoring in real time.

11. Optional LCD Keypad for Enhanced Control

Provides improved visibility and intuitive parameter setting with an optional LCD keypad interface.

12. Designed for Harsh and Remote Environments

Robust construction and smart features make it suitable for remote, harsh, and challenging installation sites.

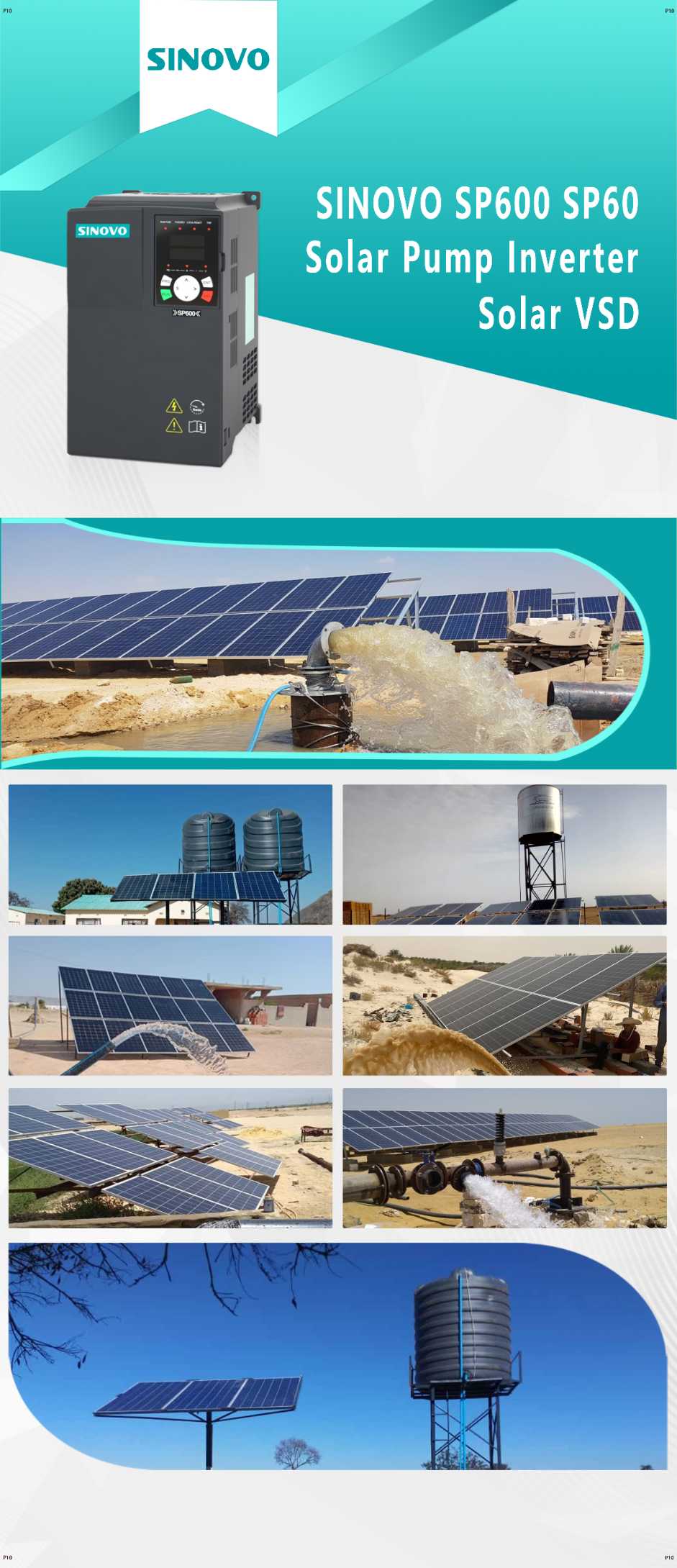

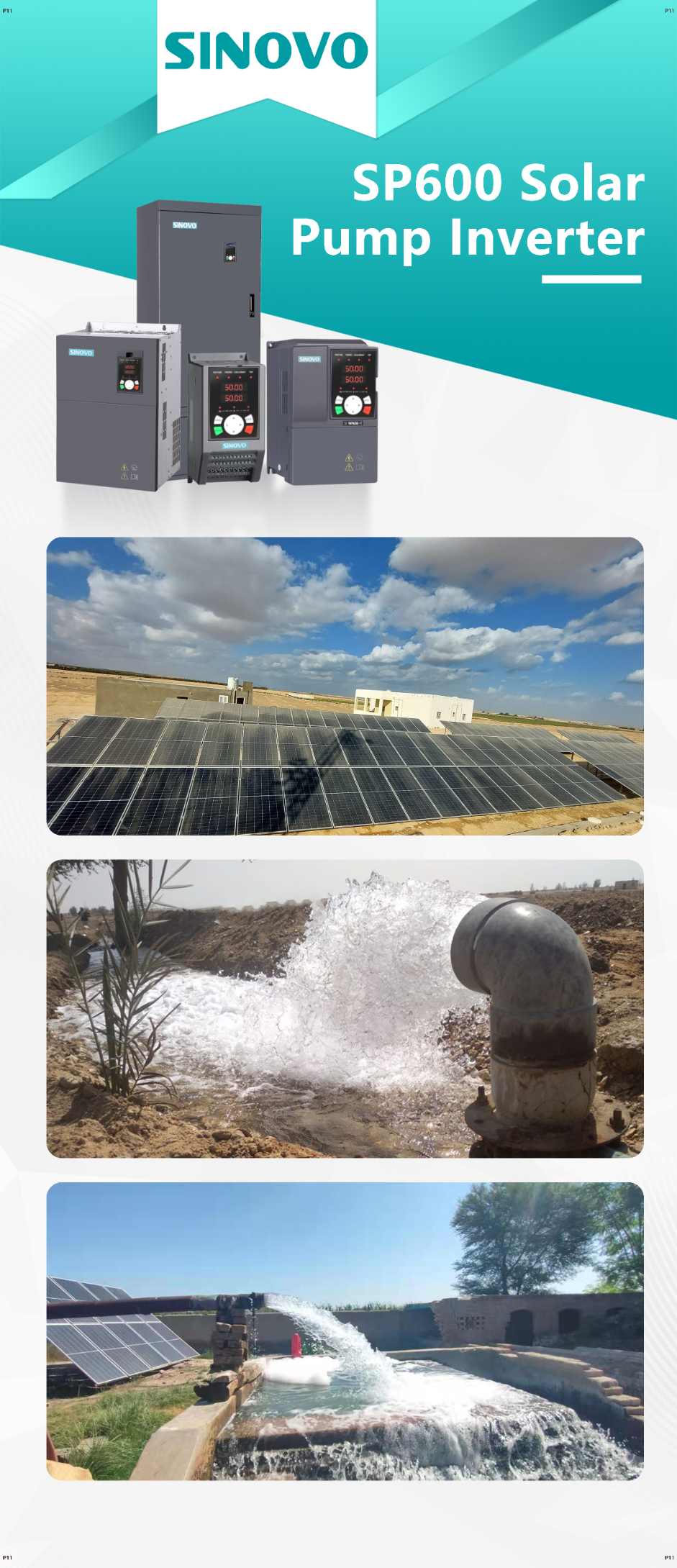

SP600 Applications
